Product Categories

UT-1200SK-04 Parts

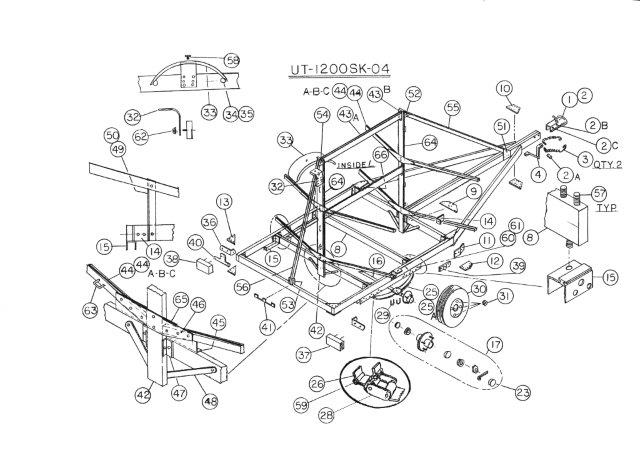

UT-1200SK-04P1

1
4-101 (UT1200SK)

2" COUPLER FOR 2 1/2" WIDE TONGUE, 3500 LB. CAPACITY, PLATED.

$31.00
2
1-2720 (UT1200SK)

1/4 X 1 1/8 X 6 5/16 2" COUPLER SPACER STR WITH HOLES NF

$3.00
2A

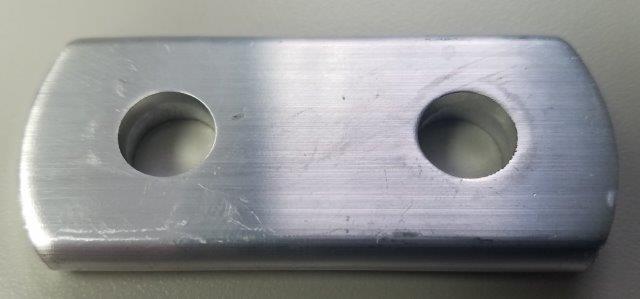

1-2707 (UT1200SK)

1/4 X 1 1/8 X 2 1/2" FOR SAFETY CABLE

$2.00
3

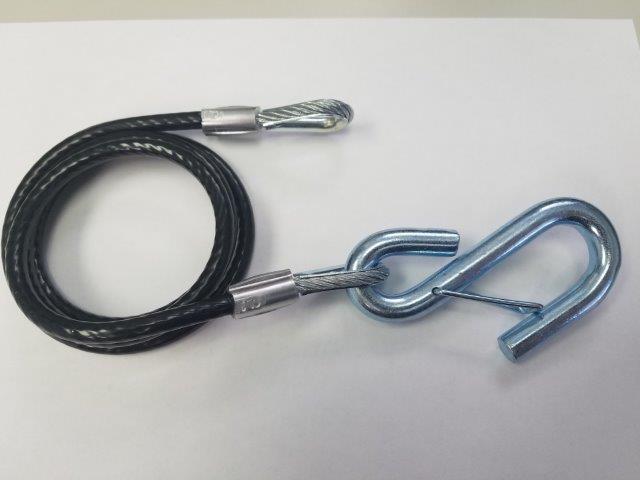

4-601D (UT1200SK)

CLASS I SAFETY HITCH CABLE, 2800# BREAK STRENGTH, 36" OAL WITH BLACK VINYL COVER (SET OF 2)

$28.00
4

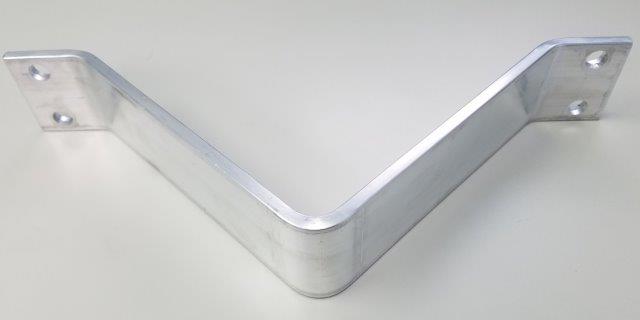

1-2973 (UT1200SK)

1/4 X 2 X 16" TONGUE SKID (NF)

$14.00
8
1-438 (UT1200SK)

TX-1011 (NF) 78 1/4" CROSSMEMBERS (CUT FROM 79")

$53.00

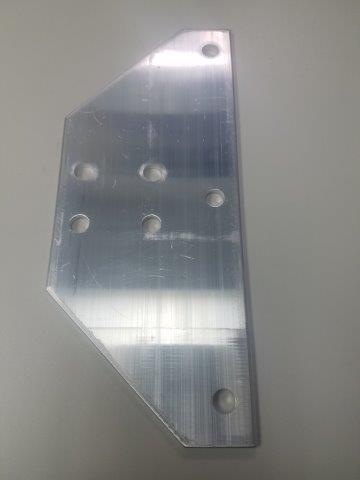

9
1-2763 (UT1200SK)

3/16 X 4 X 9 1/2" TOP AFT TONGUE PLATE (TS) (NF) CANOE

$9.60
10

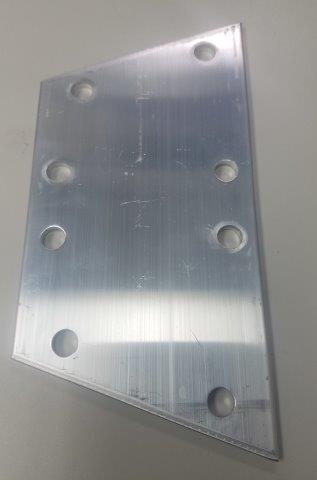

1-2754 (UT1200SK)

3/16 X 4 X 8" APEX PLATE 20 DEGREES CANOE (NF)

$9.00

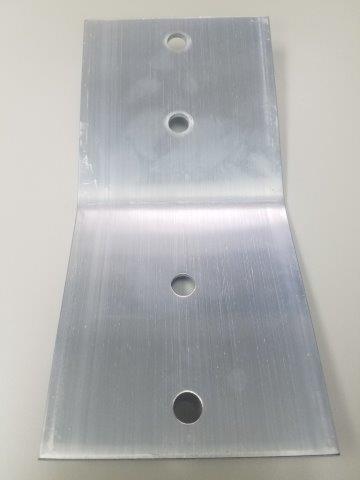

11
1-2859 (UT1200SK)

1/8 X 4 X 8 1/2" SIDE RAIL ELBOW 20 DEGREES (NF) CANOE

$11.00
12

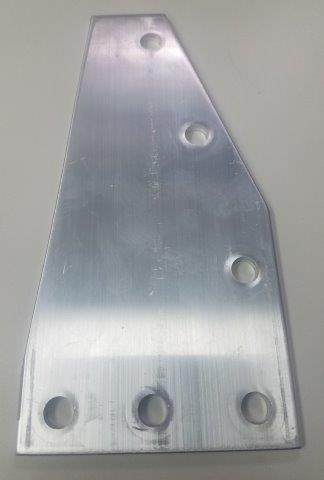

1-2758 (UT1200SK)

3/16 X 4 X 8" TOP AND BOTTOM ELBOW PLATE 20 DEGREES (NF) CANOE

$9.30
13

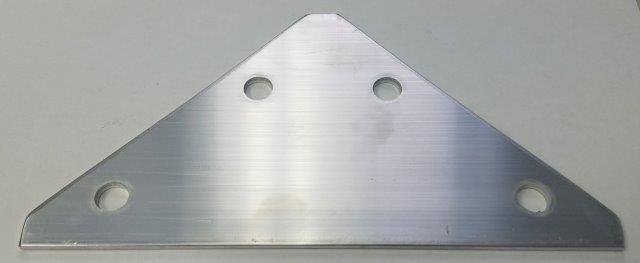

1-2854 (UT1200SK)

1/8 X 4 X 8 1/2 REAR CROSSMEMBER ANGLE PLATE

$9.00
14
1-656 (UT1200SK)

1/4 X 1 1/2 X 3 1/2 L X 3 3/4" NF SIDE RAIL TO CROSSMEMBER ATTACHING ANGLE

$9.00
15
1-602RL (UT1200SK)

TX-4 SUB RAIL 50" (ANODIZED) – LEFT/RIGHT SAME

$73.00
16
2-320GH (UT1200SK)

2000# AXLE 89 3/4" HUB FACE 78 1/4" S.C. WITH HUBS – GALVANIZED

$280.00
23
4-408TP (UT1200SK)

DUST CAP WITH RUBBER GREASE PLUG

$6.00
25

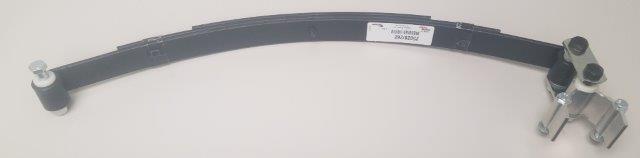

6-209A (UT1200SK)

3 LEAF SPRING COMPLETE 28 " F.L.

$146.00
26A

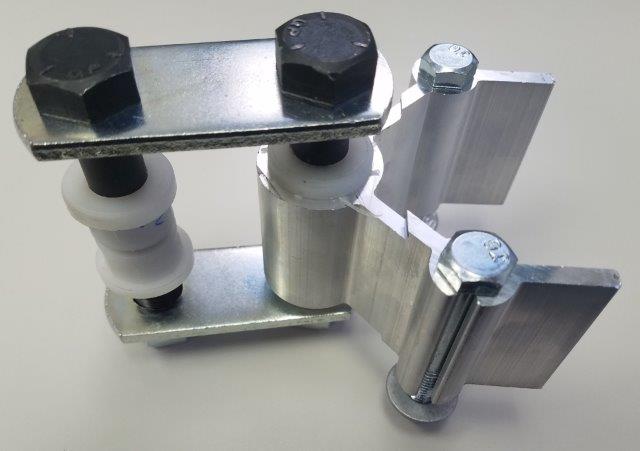

1-2302A (UT1200SK)

SPRING SHACKLE HOLDER COMPLETE WITH SHACKLE, BUSHINGS, BOLTS, AND NUTS

$30.00

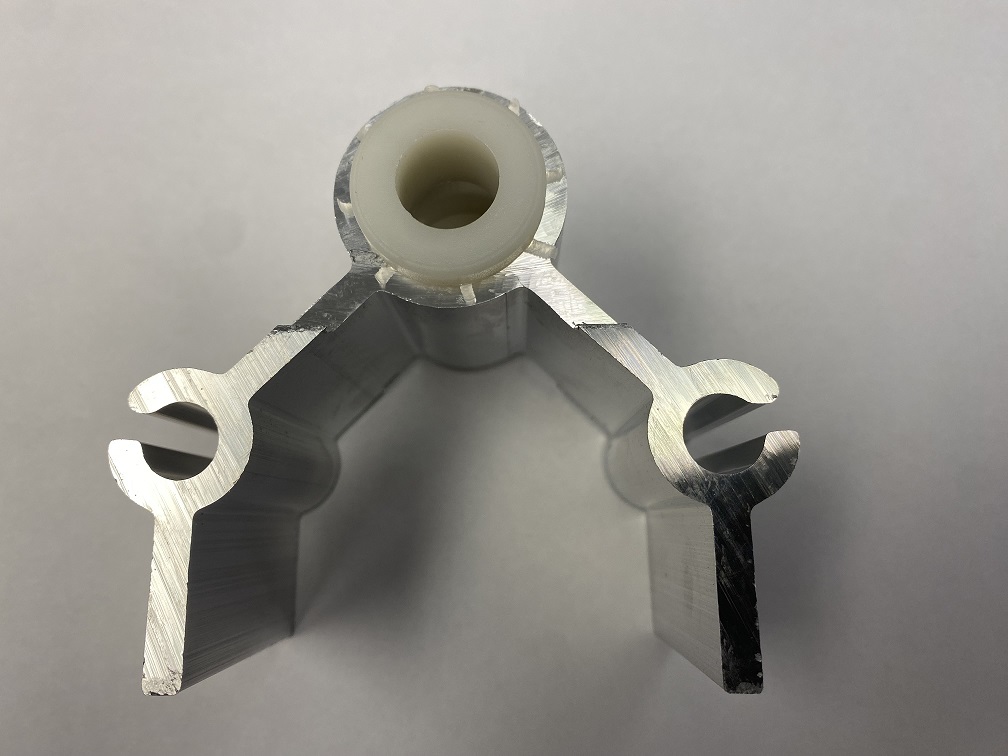

26B
1-2300A (UT1200SK)

SPRING SHACKLE HOLDER WITH ( 2 ) 9/16 ” NYLON BUSHINGS (HOLDER/BUSHINGS ONLY)

$17.80

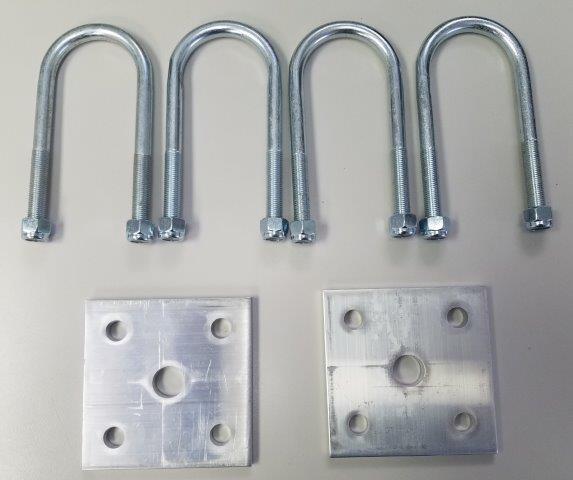

29
8-506B (UT1200SK)

U-BOLT KIT COMPLETE WITH U-BOLTS NUTS AND TIE PLATES

$27.00
30
5-136SGC (UT1200SK)

SPARE 4.80 X 12" CLR TIRE ON 4-HOLE GALVANIZED WHEEL

$97.00
31
4-406 (UT1200SK)

1/2-20 CONE NUT 60 DEGREE TAPER

$1.00

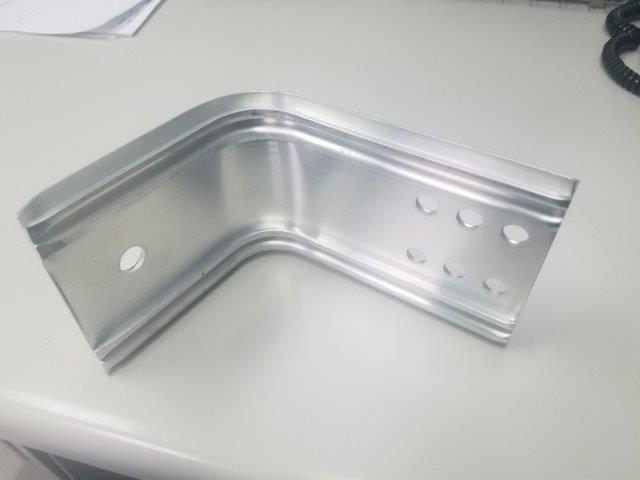

32
1-800 (UT1200SK)

TX-71 STANDARD FENDER BRACE FOR SMALL AND MEDIUM ROUND FORMED FENDERS (NF)

$15.00

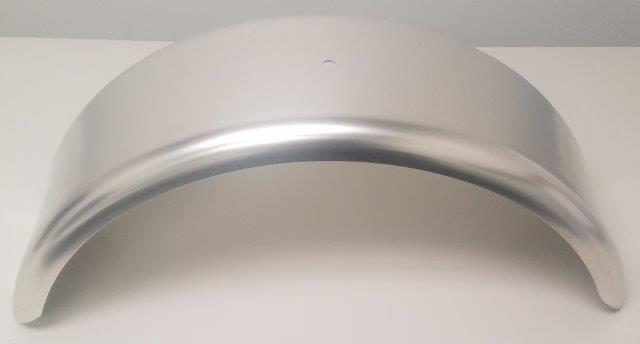

33
1-3904B (UT1200SK)

MEDIUM ROUND FENDER (MILL FINISH) (24" T-T)

$65.00

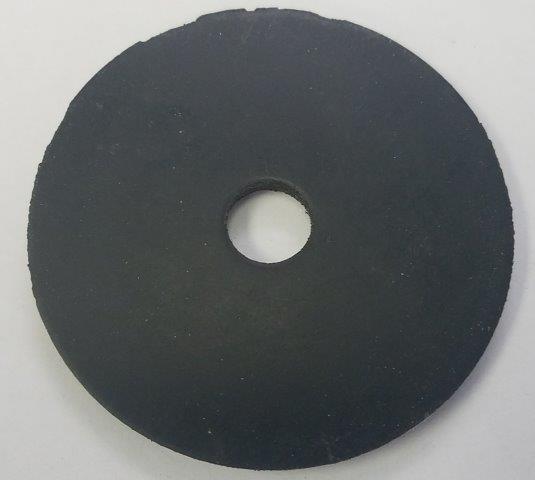

34
4-1002 (UT1200SK)

3/8 ID X 2" OD 1/8" THICK LARGE NEOPRENE WASHER

$1.50

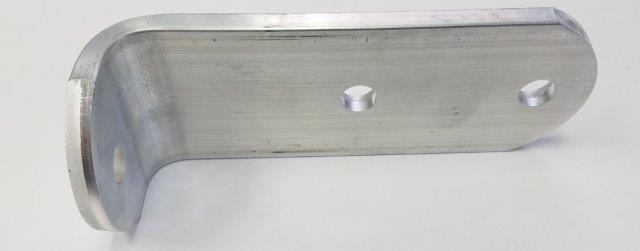

36
1-2905A (UT1200SK)

1/4 X 2 X 6 1/2" TAIL LIGHT BRACKET

$9.00

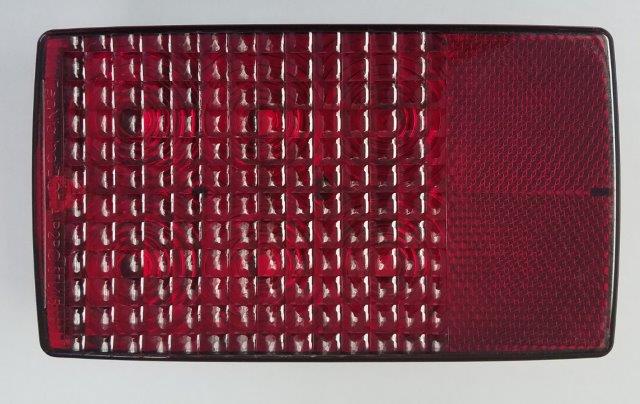

37
4-261C (UT1200SK)

LED TAIL LIGHT (RIGHT SIDE / PASSENGER SIDE)

$23.00

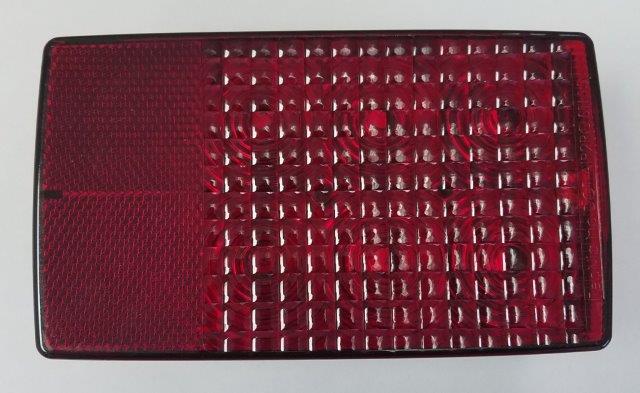

38
4-262C (UT1200SK)

LED TAIL LIGHT (LEFT SIDE/DRIVERS SIDE)

$25.00

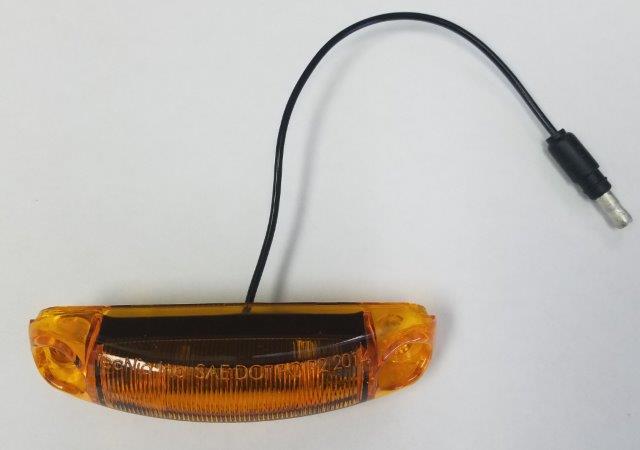

39
4-263C (UT1200SK)

AMBER MARKER CLEARANCE LIGHT WITH REFLECTOR

$15.00
40

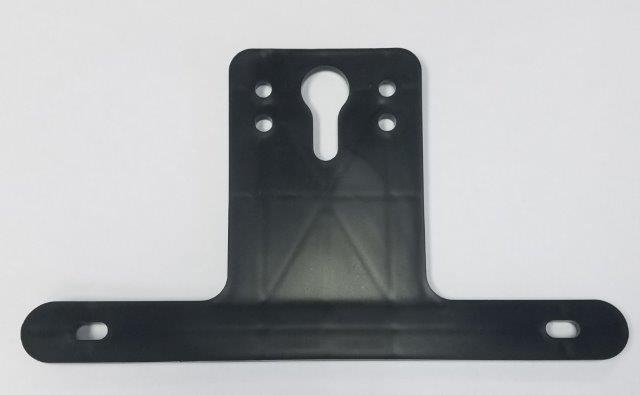

4-308 (UT1200SK)

LICENSE PLATE BRACKET – BLACK PLASTIC

$4.00
40A

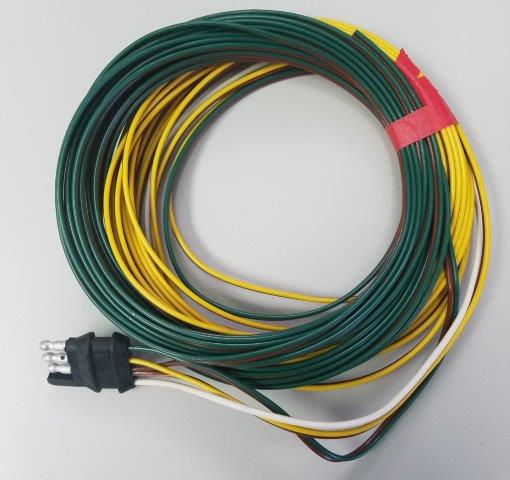

4-307 (UT1200SK)

WIRE HARNESS

$22.00

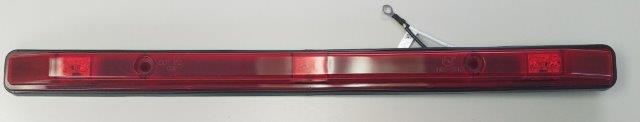

41
4-345 (UT1200SK)

LED 3 LIGHT BAR

$24.00
42
TX-1011NF (UT1200SK)

TX-1011NF 80" POST

$78.40
43
TX-1011NF-32 (UT1200SK)

TX-1011NF 32 1/8″ POST TO POST STRUCTURE

$31.48
43A
TX-1011NF-60 (UT1200SK)

TX-1011NF 60 1/4″ POST TO POST STRUCTURE

$59.04
43B

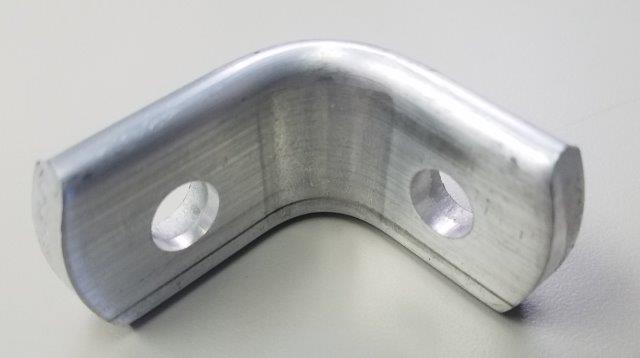

1-2713 (UT1200SK)

1/4 X 1 1/8 X 3" L (NF)

$3.00
44
1-596A (UT1200SK)

48" KAYAK ARM ASSEM.

$94.00
44A
18-005 (UT1200SK)

TX-1112(NF) 48" ARM (CUT BOTH ENDS 13 DEGREES)

$31.20
44C
1024100TW (UT1200SK)

#10-24 X 1" THIN WAFER HEAD TEK 3 (ZINC)

$0.15
45
1-675 (UT1200SK)

1/4 X 1 1/2 X 3 1/2 L X 20" (NF) INNER POST ANGLE MOUNT

$24.61
46
1-3315 (UT1200SK)

1/4 X 4 X 20" (NF) TX-1112 CROSSMEMBER ATTACHING PLATE

$18.00
47

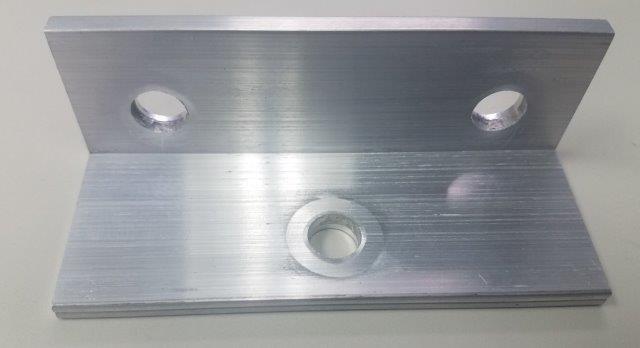

1-3602 (UT1200SK)

3/16 X 1 3/8 X 1 5/8 L X 4" (NF) TOP CROSSMEMBER ATTACH ANGLE

$6.00
48
1-2675 (UT1200SK)

1/4 X 1 1/8 X 15" UNDER POST STRUT CANOE TRAILER (NF)

$7.00

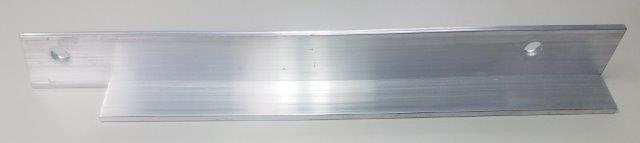

49
1-3611LH (UT1200SK)

3/16 X 1 3/8 X 1 5/8 L X 14 1/2" (NF) BOTTOM ARM TO FRAME SUPPORT, 1200 KAYAK / LH / LEFT FRONT-LEFT REAR

$18.00
50

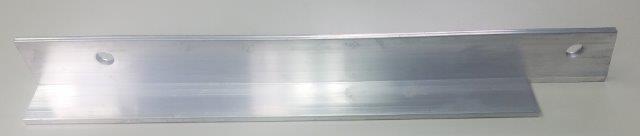

1-3611RH (UT1200SK)

3/16 X 1 3/8 X 1 5/8 L X 14 1/2 " / BOTTOM ARM TO FRAME SUPPORT – 1200 KAYAK /RH / RIGHT FRONT – RIGHT REAR

$18.00

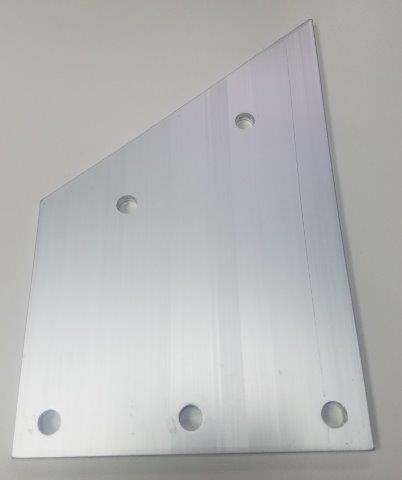

51
3-578 (UT1200SK)

1/4 X 6 X 9 1/4" FRONT POST TO TOP OF TONGUE (ANODIZED)

$19.00
52
1-2787 (PAIR)

PAIR 3/16 X 4 X 7 1/8 FRONT POST GUSSSET TO TX-1011 (TOP) (BOTH SIDES) (NF)

$31.00

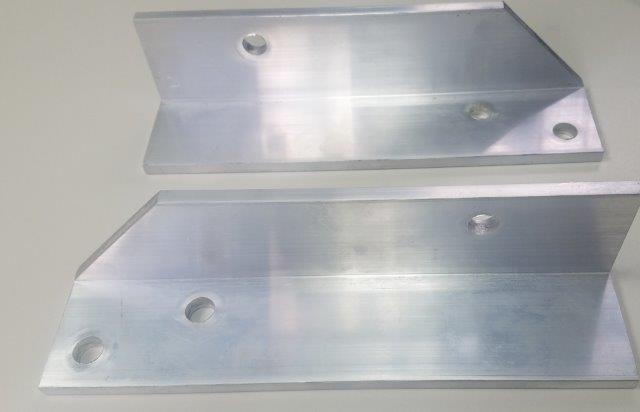

53
1-3816 (UT1200SK) (PAIR)

PAIR 1/4 X 2 X 2 L X 8 1/8" (NF) REAR POST GUSSET TO REAR CROSSMEMBER BOTTOM (BOTH SIDES)

$16.00
54
1-2786 (UT1200SK)

3/16 X 4 X 5 1/4 REAR POST GUSSETT TO TX-1011 (TOP) KAYAK(NF)

$16.00
56
TX-10NF (UT1200)

TX-10NF / 73" REAR GUSSET

$91.25

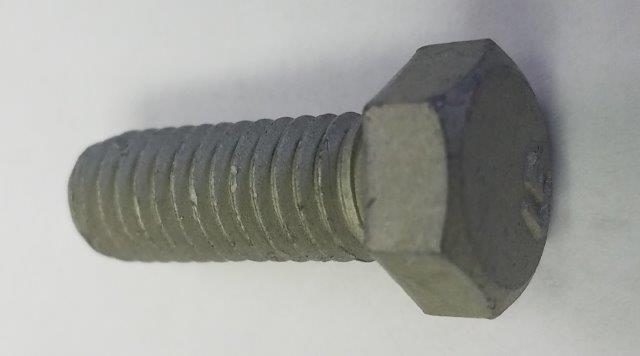

58
8-300 (UT1200SK)

3/8-16 x 1″ BOLT

$0.36
