SUT-500-S Parts

SUT-500-SR

1
4-100 (500S)

1 7/8" COUPLER FOR 2 1/2" WIDE TONGUE, 2000 LB CAPACITY

$24.00
2
4-601D (500S)

CLASS I SAFETY HITCH CABLE, 2800# BREAK STRENGTH, 36" OAL WITH BLACK VINYL COVER

$28.00
2A

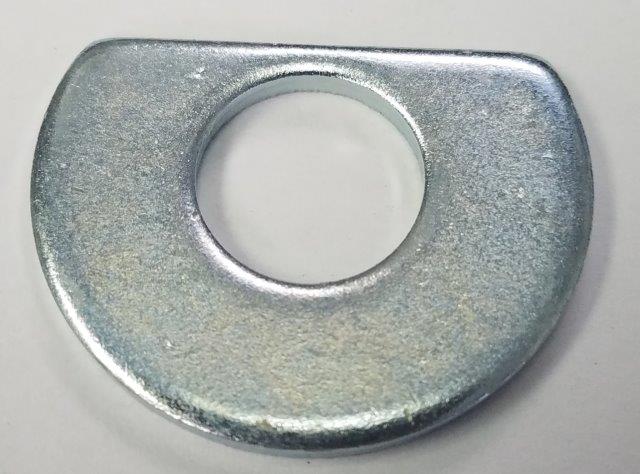

8-463 (500S)

1/2" FLAT WASHER SHEARED FOR COUPLER

$1.00
7
1-2604A (500S)

1/4 X 1 1/8 X 15" SKID

$15.00
8A

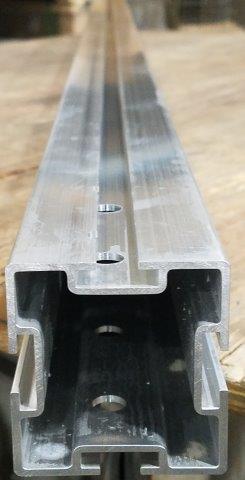

1-1249D (500S)

TX-10 (NF) 87" FRONT TONGUE SECTION – DRILLED FOR COUPLER

$125.00
8B

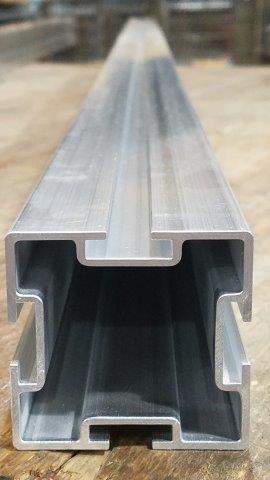

1-1249 (500S)

REAR TONGUE SECTION TX-10 87"

$120.00
9
1-2751 (500S)

3/16 X 4 X 12 WINCH POST DIAGONAL L BRACE (NF)

$18.00
11

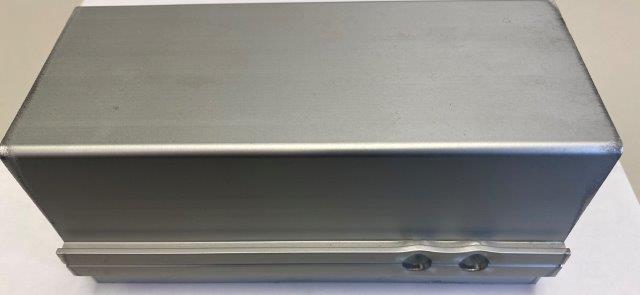

1-2502 (500S)

TX-611 6 1/2" STANDARD WINCH CAP

$21.00
12

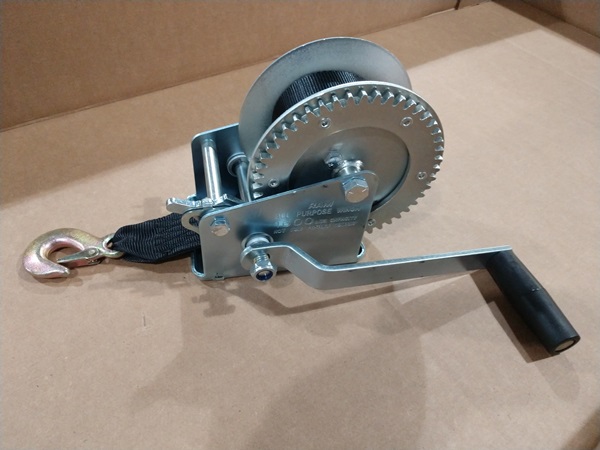

4-201 (500S)

MEDIUM WINCH 1400# CAPACITY

$112.00
13
1-2657B (500S)

3" BOW ROLL MOUNTED IN 1/4 X 1 1/8 X 8 3/4" OFFSET SLOTTED BRACKET

$44.00
15
1-2608B (500S)

6" CENTER KEEL ROLL COMPLETE

$77.00
16
1-917AC (500S)

TX-8 5-3/4" LENGTH for LED AMBER MARKER LIGHTS 4-263C

$22.00
17

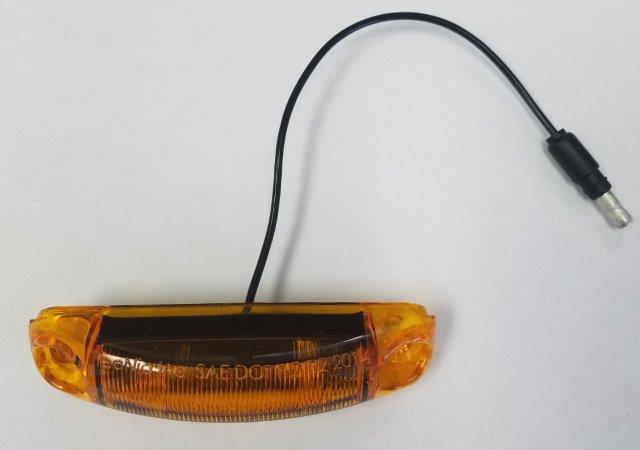

4-263C (500S)

AMBER MARKER CLEARANCE LIGHT WITH REFLECTOR

$15.00
18

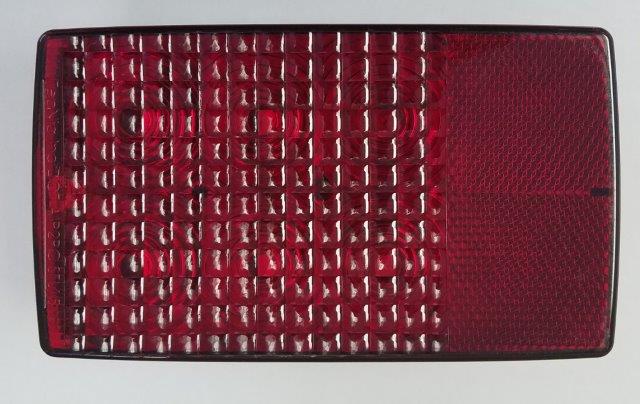

4-261C (500S)

LED TAIL LIGHT (RIGHT SIDE / PASSENGER SIDE)

$23.00
19A

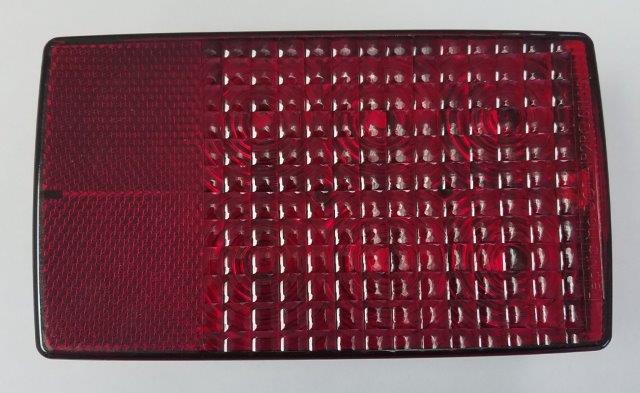

4-262C (500S)

LED TAIL LIGHT (LEFT SIDE/DRIVERS SIDE)

$25.00
19B

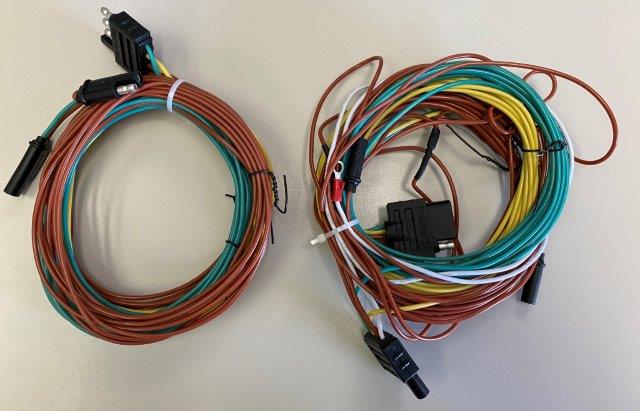

4-267FR (500S)

WIRING HARNESS, FRONT AND REAR

$31.00
20

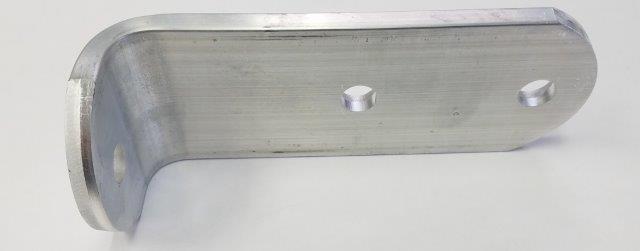

1-2905A (500S)

1/4 X 2 X 6 1/2" TAIL LIGHT BRACKET

$9.00
21
4-308 (500S)

LICENSE PLATE BRACKET BLACK PLASTIC

$4.00
22
1-566 (500S)

TX-1112 (NF) CROSSBAR 51 3/4"

$45.00
23
1-565 (500S)

TX-1112 SIDERAIL 33" (NF)

$28.00
24

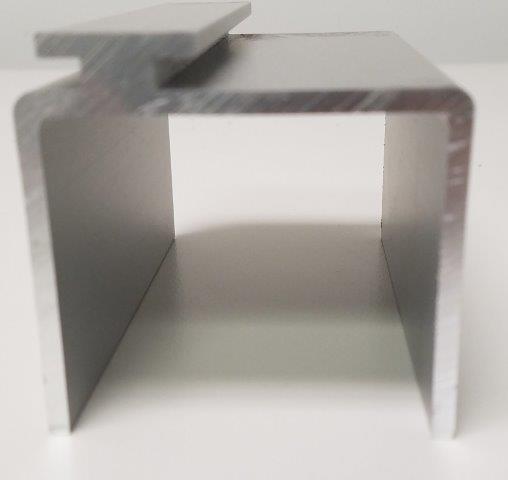

1-609RL (500S)

TX-4 SUB RAIL 33" LONG, ANODIZED (LEFT & RIGHT SAME)

$46.00
25
1-2854 (500S)

1/8 X 4 X 8 1/2 REAR CROSSMEMBER ANGLE PLATE

$9.00
27A

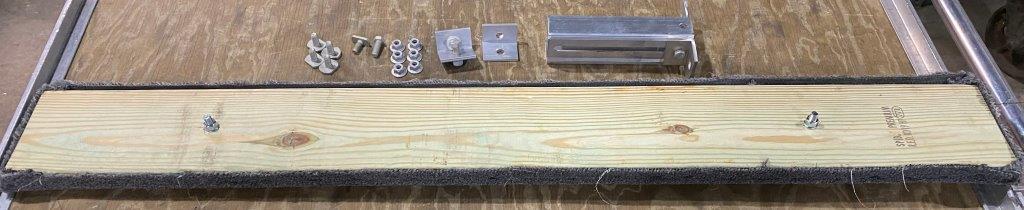

SUT-250-SWB (500S)

48" PADDED BUNK COMPLETE WITH ANGLE BRACKET

$117.00
27B

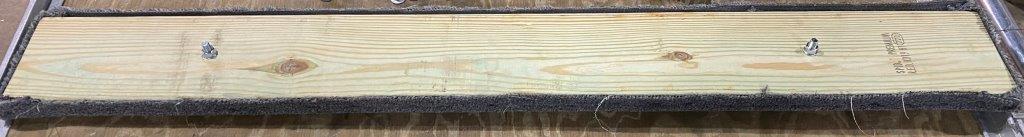

10-175 (500S)

5/4 X 6 X 48" PADDED BUNK ONLY

$87.00
28

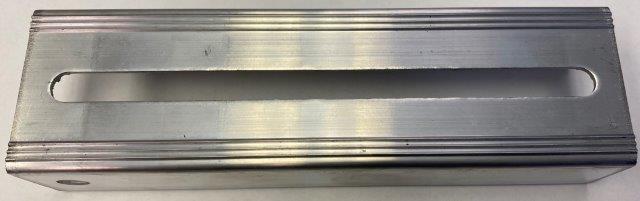

1-900 (500S)

TX-8 8" NF SLOTTED BUNK BRACKET

$11.00
30

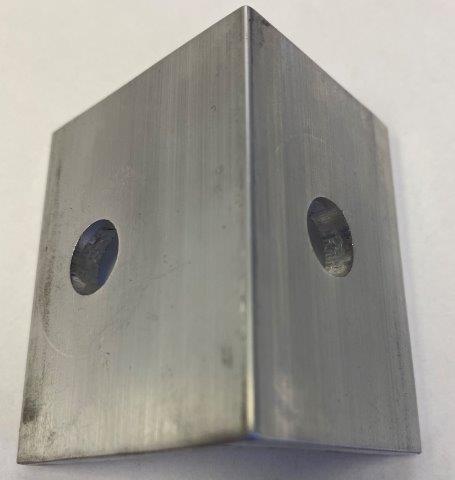

1-3601 (500S)

3/16 X 1 3/8 X 1 5/8 X 2" (NF) (TX-8 STABILIZER)

$4.00
31

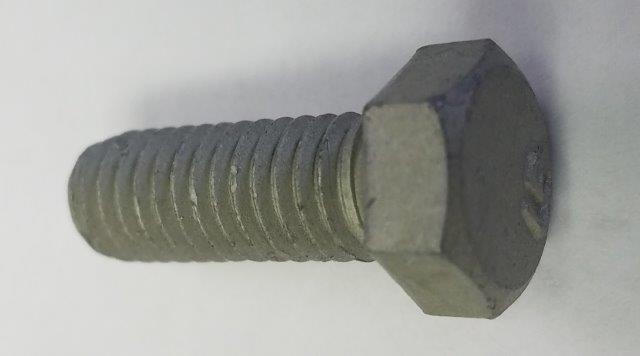

8-300 (500S)

3/8-16 x 1" BOLT

$0.36
32B

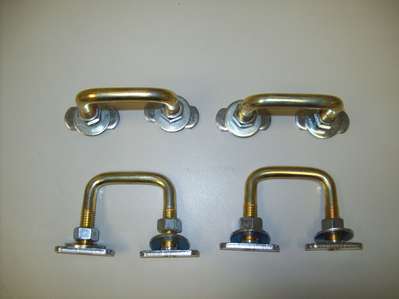

FWSC (500S)

FOUR WEB STRAP CLIPS

$22.00
33

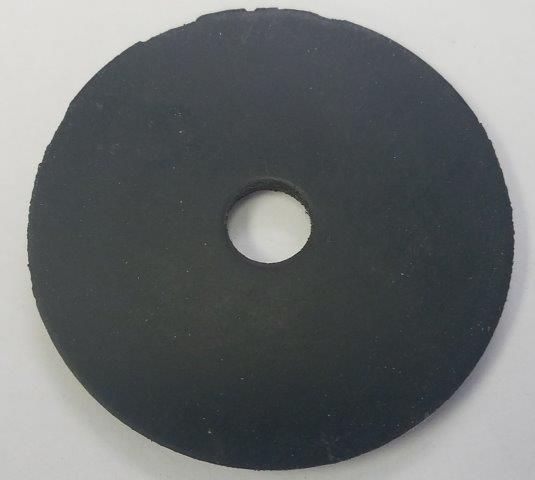

4-1002 (500S)

3/8 ID X 2" OD 1/8" THICK LARGE NEOPRENE WASHER

$1.50
34A
1-3910K (500S)

SMALL PLASTIC FENDER COMPLETE WITH BOLTS, NUTS, WASHERS

$45.00
34B

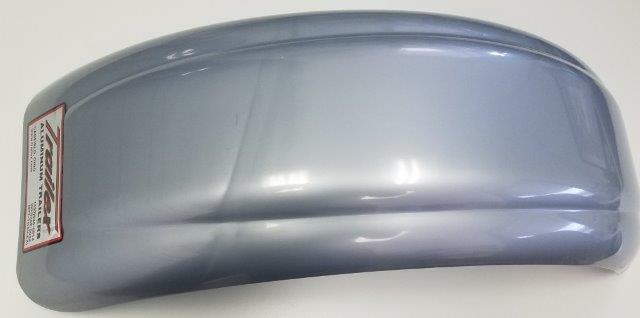

1-3910PD (500S)

SMALL PLASTIC FENDER SILVER DRILLED

$27.00
35A

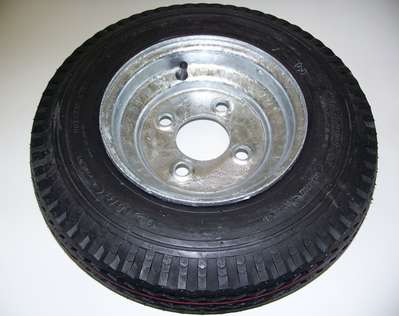

5-137G (500S)

SPARE 4.80 X 8" TIRE AND GALVANIZED WHEEL, 4" BOLT CIRCLE ON 4 HOLE WHEEL 590# CAP

$64.00
35B
5-136SGC (500S)

SPARE 4.80 X 12" CLR TIRE ON 4-HOLE GALVANIZED WHEEL

$97.00
36

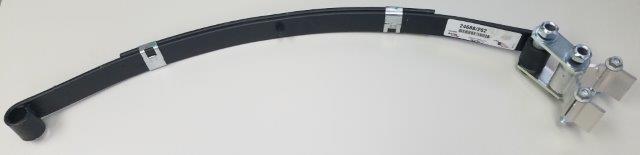

6-210A (500S)

2 LEAF SPRING COMPLETE WITH SHACKLE HOLDER,SHACKLE,BUSHING,BOLTS AND NUTS

$143.00
39A
1-2302A (500S)

SPRING SHACKLE HOLDER COMPLETE WITH SHACKLE, BUSHINGS, BOLTS, AND NUTS

$30.00
39B

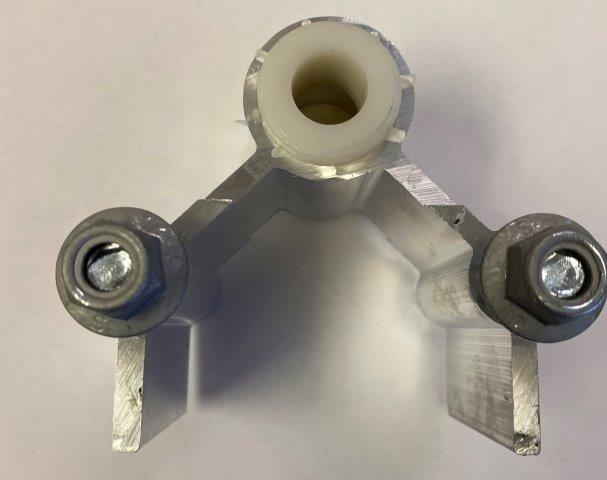

1-2300A (500S)

SPRING SHACKLE HOLDER WITH ( 2 ) 9/16 " NYLON BUSHINGS (HOLDER/BUSHINGS ONLY)

$17.80
42
2-304GH (500S)

2000# AXLE 63 1/2" HUB FACE 51 3/4" S.C. WITH HUBS – GALVANIZED

$280.00
43

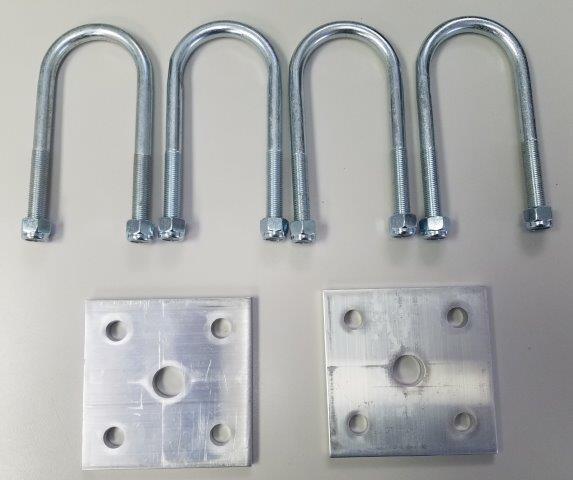

8-506B (500S)

U-BOLT KIT COMPLETE U-BOLTS, NUTS AND TIE PLATES

$27.00
44
1-3618 (500S)

3/16 X 1 3/8 X 1 5/8 L X 3 3/16" (NF) TONGUE TO CROSSMEMBER

$5.00
49

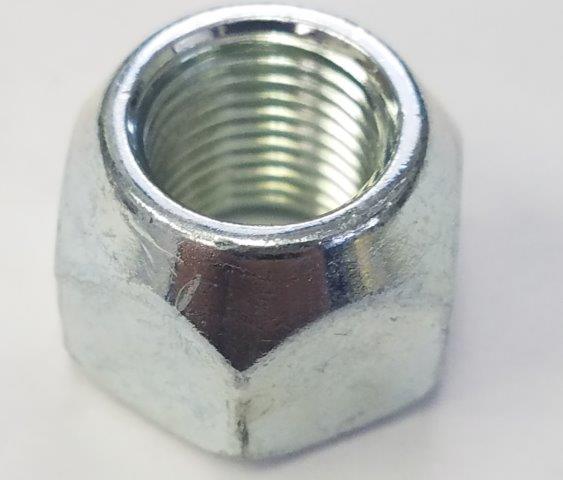

4-406 (500S)

1/2 – 20 CONE NUT 60 DEGREE TAPER

$1.00
52
4-408TP (500S)

DUST CAP WITH RUBBER GREASE PLUG

$6.00
54

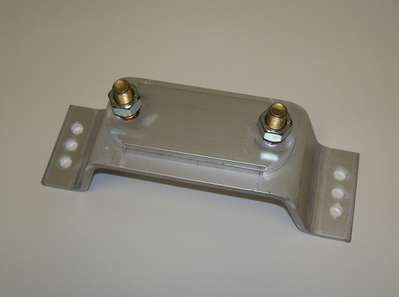

5-215 (500S)

SPARE TIRE CARRIER

$76.00
54
TX-10NF (500S)

WINCH POST NATURAL FINISH 18"

$22.50
55
1-3848 (500S)

1/4 X 2 X 2 L X 7 3/4′ TX-10 TONGUE SPLICE

$13.00
8-401NYPKG15 (500S)

3/8-16 LARGE FLANGE NYLON INSERT HEX LOCK NUTS 7/8" FLANGE (MAGNI 17) (PACKAGE OF 15)

$10.00
8-104PKG15

3/8-16 x 1 1/8″ T-BOLTS (PACKAGE of 15)

$12.00
8-103PKG15 (500S)

3/8-16 x 3/4 REPAIR T-BOLTS (PACKAGE OF 15)

$15.00
8-100PKG15 (500S)

3/8-16 x 3/4 T-BOLTS (PACKAGE OF 15)

$10.00
WP48SBMOPT-W (500S)

48" FRONT MAST STAND WITHOUT WINCH

$232.00
WP48SBMOPT (500S)

48" FRONT MAST STAND, INCLUDES 1500# WINCH

$321.00
